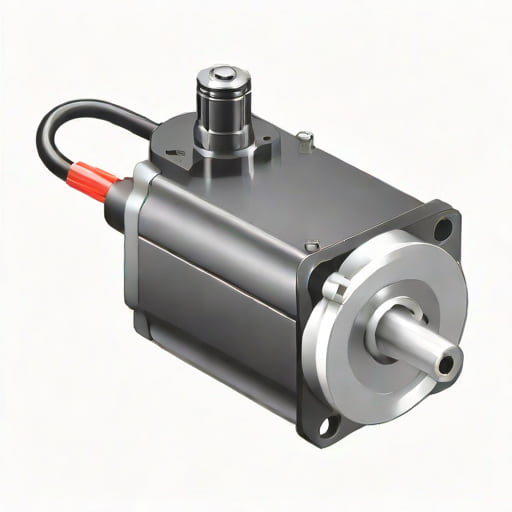

A brushless servo motor is an advanced type of electric motor that combines the precision control of a servo system with the efficiency and durability of a brushless motor. These motors are widely used in robotics, automation, drones, CNC machines, and industrial applications due to their high performance, reliability, and long lifespan. Unlike traditional brushed motors, brushless servo motors do not have brushes that wear out over time, which significantly reduces maintenance requirements and increases overall efficiency. They are designed to provide precise control of position, speed, and torque, making them essential in applications where accuracy and responsiveness are critical.
Understanding Brushless Servo Motors
Brushless servo motors are a type of motor that uses electronic commutation instead of mechanical brushes to control the flow of current through the motor windings. This design eliminates friction and wear associated with brushes, resulting in higher efficiency and reduced maintenance. The term servo indicates that the motor is equipped with a feedback mechanism, such as an encoder or resolver, that allows for precise control of motion. This combination makes brushless servo motors ideal for tasks requiring high accuracy, smooth operation, and consistent performance over time.
Components of a Brushless Servo Motor
A brushless servo motor typically consists of several key components
- RotorThe rotating part of the motor that is attached to the output shaft. It contains permanent magnets in most brushless designs.
- StatorThe stationary part of the motor that contains windings and generates a magnetic field when current flows through it.
- Encoder or ResolverA feedback device that monitors the rotor’s position and provides signals to the controller for precise motion control.
- Electronic ControllerAlso known as a servo drive, this component regulates the power supplied to the motor based on feedback from the encoder, ensuring accurate control of speed, torque, and position.
How Brushless Servo Motors Work
Brushless servo motors operate using electronic commutation. The controller continuously adjusts the current in the stator windings to create a rotating magnetic field that interacts with the rotor magnets. The feedback device constantly monitors the rotor’s position and sends signals to the controller, which adjusts the current to maintain the desired motion profile. This closed-loop control system allows the motor to achieve high precision in position, speed, and torque, making it suitable for tasks that demand accurate and responsive movements. Unlike brushed motors, the absence of brushes means there is no mechanical contact causing wear or energy loss, improving the motor’s efficiency.
Advantages of Brushless Servo Motors
Brushless servo motors offer several advantages over traditional brushed motors and standard stepper motors
- High EfficiencyThe lack of brushes reduces friction and energy loss, allowing for more efficient operation.
- Long LifespanWith fewer mechanical components subject to wear, these motors generally last longer than brushed alternatives.
- Precise ControlThe feedback mechanism allows for accurate control of position, speed, and torque, which is essential in robotics and CNC machines.
- Low MaintenanceSince there are no brushes to replace, maintenance requirements are minimal.
- Quiet OperationBrushless motors produce less noise due to the absence of brush friction.
- High Torque-to-Weight RatioThey provide strong torque relative to their size, which is useful in compact and lightweight applications like drones.
Applications of Brushless Servo Motors
Brushless servo motors are used in a wide variety of industries and applications where precise motion control and high efficiency are critical
Industrial Automation
In industrial settings, brushless servo motors are used to drive conveyor belts, robotic arms, packaging machines, and CNC machinery. Their ability to provide precise control over speed and position ensures high-quality production, consistent operation, and minimal downtime. They are often integrated with programmable logic controllers (PLCs) and other automation systems for optimized performance.
Robotics
Robotics applications rely heavily on brushless servo motors due to their precision, speed, and responsiveness. They enable smooth and accurate movements in robotic joints, articulated arms, and mobile robots. Their compact size and high torque make them ideal for both lightweight and heavy-duty robotic systems.
Drones and Aerospace
Brushless servo motors are commonly used in drones and aerospace equipment for their efficiency, low weight, and reliability. These motors can provide precise control for propellers, gimbals, and other critical components, ensuring stable flight and accurate positioning in challenging environments.
Medical Equipment
In medical applications, brushless servo motors are used in surgical robots, imaging devices, and laboratory automation. The precision and reliability of these motors are crucial for ensuring safety, accuracy, and repeatability in sensitive medical procedures.
Types of Brushless Servo Motors
Brushless servo motors come in several configurations depending on the design and application requirements. Common types include
- Inner Rotor MotorsThe rotor is located inside the stator, offering high torque and compact design.
- Outer Rotor MotorsThe rotor surrounds the stator, providing high inertia and smooth operation, often used in low-speed, high-torque applications.
- AC Brushless Servo MotorsPowered by alternating current, these motors are common in industrial automation due to their precise control and robustness.
- DC Brushless Servo MotorsPowered by direct current, these motors are popular in robotics, drones, and smaller machinery where efficiency and lightweight design are important.
Choosing the Right Brushless Servo Motor
Selecting the appropriate brushless servo motor depends on several factors, including the required torque, speed, precision, power supply, and environmental conditions. Engineers must consider the motor’s performance specifications, including torque-to-inertia ratio, peak torque, and continuous operation limits. Additional considerations include compatibility with the controller, ease of integration into the system, and the type of feedback mechanism, such as encoders or resolvers. Proper selection ensures optimal performance, energy efficiency, and reliability in the intended application.
Maintenance and Longevity
Although brushless servo motors require less maintenance than brushed motors, regular inspection and preventive care are important for long-term performance. Checking the motor’s electrical connections, monitoring temperature, and ensuring the feedback devices are functioning correctly can help prevent unexpected failures. Lubrication of bearings and periodic calibration of control systems also contribute to reliable operation over extended periods.
Brushless servo motors are essential components in modern automation, robotics, aerospace, and industrial machinery. Their combination of precise motion control, high efficiency, low maintenance, and long lifespan makes them ideal for applications where reliability and accuracy are critical. By understanding their structure, operation, types, and applications, engineers and designers can leverage brushless servo motors to optimize performance and achieve advanced automation solutions. As technology continues to evolve, brushless servo motors are likely to become even more sophisticated, providing higher performance, smaller form factors, and greater energy efficiency across a wide range of industries.
