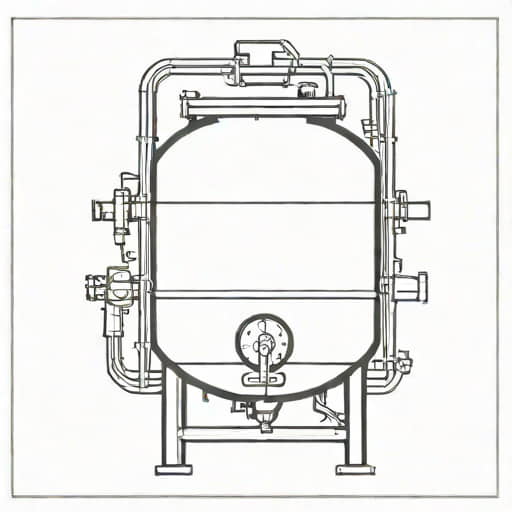

A continuous stirred tank fermenter is a core piece of equipment in modern biotechnology and industrial microbiology, widely used to grow microorganisms and produce valuable products on a continuous basis. Unlike batch systems that run in cycles, this fermenter operates with a constant flow of nutrients entering the vessel and product leaving it. Because of this steady operation, the continuous stirred tank fermenter plays an important role in large-scale production where consistency, efficiency, and control are critical.
Basic Concept of a Continuous Stirred Tank Fermenter
A continuous stirred tank fermenter, often abbreviated as CSTF, is a type of bioreactor designed to maintain a uniform environment throughout the vessel. Fresh culture medium is continuously fed into the tank, while an equal volume of fermented broth is removed at the same rate. This balance keeps the working volume constant.
The stirred tank aspect refers to mechanical agitation using an impeller. Stirring ensures that nutrients, microorganisms, oxygen, and temperature are evenly distributed. This uniformity is essential for stable microbial growth and predictable product formation.
How Continuous Operation Works
In a continuous stirred tank fermenter, the process begins once the reactor reaches a steady state. At steady state, microbial growth rate matches the dilution rate, meaning cells grow as fast as they are removed. This condition allows the system to operate continuously for long periods.
The dilution rate is a key parameter. It is defined as the flow rate of fresh medium divided by the reactor volume. If the dilution rate is too high, microorganisms may be washed out of the system. If it is too low, productivity may decrease.
Key Elements of Continuous Operation
- Constant feed of fresh nutrients
- Equal removal of fermented broth
- Stable working volume
- Controlled growth conditions
Main Components of a Continuous Stirred Tank Fermenter
A continuous stirred tank fermenter consists of several essential components that work together to maintain optimal conditions for microbial growth.
Vessel and Agitation System
The vessel is usually made of stainless steel to withstand pressure, temperature changes, and repeated sterilization. Inside the vessel, an impeller provides continuous stirring. This agitation prevents cell settling and ensures efficient mixing.
Aeration System
Many fermentation processes require oxygen. Air or pure oxygen is introduced through spargers at the bottom of the tank. Stirring helps break air into fine bubbles, increasing oxygen transfer efficiency.
Temperature and pH Control
Temperature is controlled using cooling jackets or internal coils. pH is monitored with sensors and adjusted automatically by adding acids or bases. These controls are critical in a continuous stirred tank fermenter because small deviations can affect long-term stability.
Microbial Growth in Continuous Fermentation
Microorganisms in a continuous stirred tank fermenter are maintained in an active growth phase for extended periods. This differs from batch fermentation, where cells move through lag, exponential, and stationary phases.
Operating in the exponential phase allows for consistent metabolic activity. As a result, product formation can remain stable over time, which is highly desirable for industrial processes.
Advantages of a Continuous Stirred Tank Fermenter
The continuous stirred tank fermenter offers several advantages over traditional batch fermentation systems.
High Productivity
Because the system runs continuously, downtime between batches is eliminated. This increases overall productivity and reduces idle equipment time.
Consistent Product Quality
Steady-state operation leads to uniform product characteristics. This consistency is especially important in industries such as pharmaceuticals and food processing.
Efficient Use of Resources
Continuous operation can result in better utilization of nutrients and energy. Waste generation may also be reduced when the system is well optimized.
Challenges and Limitations
Despite its benefits, a continuous stirred tank fermenter also presents certain challenges.
Risk of Contamination
Since the system operates for long periods, contamination can be more problematic than in batch processes. A single contaminant can persist and disrupt the entire operation.
Process Control Complexity
Maintaining steady-state conditions requires precise control of flow rates, temperature, pH, and oxygen. Small errors can lead to washout or reduced productivity.
Genetic Stability
Over extended operation, microorganisms may undergo genetic changes. These changes can alter productivity or product quality, making monitoring essential.
Applications in Industry
The continuous stirred tank fermenter is widely used across multiple industries due to its scalability and efficiency.
Pharmaceutical Production
Many antibiotics, enzymes, and therapeutic proteins are produced using continuous fermentation. The ability to maintain stable production is a major advantage.
Food and Beverage Industry
Continuous stirred tank fermenters are used in processes such as yeast production and organic acid fermentation. Consistent output is crucial for large-scale food manufacturing.
Biofuel and Biochemical Production
In bioethanol and other bio-based chemical production, continuous fermentation supports high throughput and cost-effective operation.
Comparison With Batch and Fed-Batch Fermentation
Understanding the role of a continuous stirred tank fermenter is easier when compared with other fermentation modes.
Batch fermentation involves loading all nutrients at the start and harvesting at the end. Fed-batch adds nutrients during operation but does not remove product until completion. In contrast, continuous fermentation constantly adds and removes material.
Key Differences
- Batch simple but less productive
- Fed-batch flexible and widely used
- Continuous high productivity and consistency
Steady-State Conditions Explained
Steady state is the defining feature of a continuous stirred tank fermenter. At steady state, cell concentration, nutrient levels, and product concentration remain constant over time.
Achieving steady state requires careful adjustment of dilution rate and environmental conditions. Once established, it allows operators to predict performance and scale up processes with greater confidence.
Importance of Mixing and Homogeneity
Effective mixing is essential in a continuous stirred tank fermenter. Poor mixing can create gradients of nutrients, oxygen, or temperature, leading to uneven growth.
Uniform conditions ensure that all microorganisms experience the same environment, which supports stable and reproducible fermentation results.
Monitoring and Automation
Modern continuous stirred tank fermenters rely heavily on automation. Sensors continuously monitor parameters such as pH, temperature, dissolved oxygen, and biomass concentration.
Automated control systems adjust inputs in real time, reducing the risk of human error and improving long-term stability.
Environmental and Economic Considerations
From an economic perspective, continuous fermentation can lower production costs by increasing output and reducing downtime. Environmentally, optimized continuous systems may generate less waste per unit of product.
However, the initial investment and operational complexity can be higher than simpler batch systems, requiring careful cost-benefit analysis.
Future Trends in Continuous Fermentation
Advances in sensor technology, data analytics, and process control are expanding the use of continuous stirred tank fermenters. Improved monitoring allows for better control of microbial behavior and product quality.
As industries seek more sustainable and efficient production methods, continuous fermentation is expected to play an increasingly important role.
A continuous stirred tank fermenter is a powerful tool in modern biotechnology, offering high productivity, consistent product quality, and efficient resource use. By maintaining steady-state conditions through continuous feeding and removal, it supports long-term microbial growth and stable production. While challenges such as contamination risk and process complexity exist, careful design and control can overcome these issues. As technology advances, the continuous stirred tank fermenter will remain a cornerstone of large-scale fermentation and bioprocessing industries.
