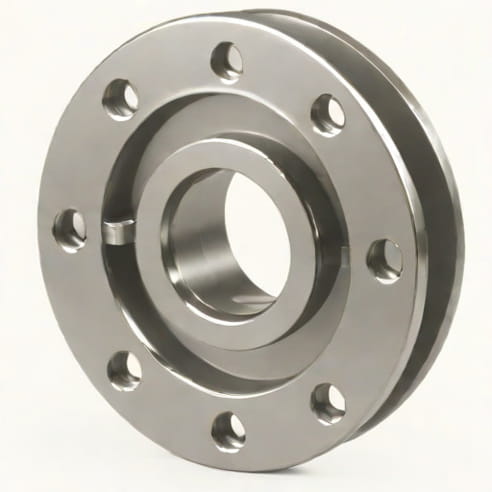

Flange adapter ductile iron is an essential component in modern piping systems, widely used in water, wastewater, and industrial applications. It serves as a reliable connection point between pipes and valves, allowing for secure installation, maintenance, and system flexibility. Known for its strength, corrosion resistance, and durability, ductile iron flange adapters are preferred in many infrastructure projects and industrial pipelines. Their ability to handle high pressures and harsh environmental conditions makes them a critical choice for engineers, contractors, and maintenance professionals seeking long-lasting and efficient piping solutions.
Understanding Flange Adapters
A flange adapter is a mechanical fitting that connects pipes to flanges, valves, or other equipment in a piping system. Unlike rigid connections, flange adapters provide a degree of flexibility, allowing for adjustments during installation and accommodating minor misalignments. Ductile iron is often chosen for these adapters because of its superior tensile strength, impact resistance, and ability to withstand pressure without cracking or deforming. By using flange adapters, piping systems can maintain structural integrity while enabling easier maintenance and replacement of components.
Key Features of Ductile Iron Flange Adapters
Ductile iron flange adapters offer several important features that make them suitable for demanding applications
- High StrengthDuctile iron has a high tensile strength, making the adapter capable of withstanding significant internal pressure and external forces.
- Corrosion ResistanceProtective coatings, such as epoxy or zinc, enhance resistance to corrosion, extending the lifespan of the adapter in water and wastewater systems.
- DurabilityDuctile iron is tough and resistant to wear, which ensures long-term performance even under fluctuating pressures and environmental stress.
- FlexibilityFlange adapters allow for slight adjustments during installation, accommodating minor misalignments between pipes and equipment.
- Ease of MaintenanceThe detachable nature of flange connections enables easier inspection, replacement, or repair of connected components.
Applications of Flange Adapter Ductile Iron
Flange adapter ductile iron is used in a wide range of applications, from municipal water supply networks to industrial process piping. Their versatility and reliability make them a standard component in projects requiring robust and secure connections. Common applications include
- Water distribution pipelines
- Sewage and wastewater systems
- Industrial chemical pipelines
- Fire protection systems
- Pumping stations and treatment facilities
Water and Wastewater Systems
In municipal water and wastewater systems, ductile iron flange adapters are favored for their ability to handle high pressure and resist corrosion caused by continuous water flow. They ensure leak-free connections and simplify the maintenance of pipelines, valves, and other equipment. The robustness of ductile iron prevents damage from mechanical stress or environmental exposure, contributing to reliable and long-lasting infrastructure.
Industrial Piping Applications
Industrial plants often require piping systems capable of handling chemicals, high-pressure fluids, or extreme temperatures. Flange adapter ductile iron provides the necessary strength and chemical resistance to maintain safe and efficient operation. In industries such as power generation, manufacturing, and chemical processing, these adapters ensure that pipes, pumps, and valves are securely connected and can withstand demanding conditions without failure.
Installation and Maintenance Considerations
Proper installation of ductile iron flange adapters is critical to achieving optimal performance and longevity. These components must be aligned carefully to prevent leaks and ensure structural integrity. Typically, flange adapters are bolted to flanges using gaskets to provide a secure seal. Regular maintenance, including inspection for corrosion, wear, or loose bolts, helps prolong service life and prevents unexpected failures in the system.
Steps for Installation
- Ensure pipes and flange surfaces are clean and free of debris.
- Align the flange adapter with the pipe and mating flange.
- Insert the gasket between the flange faces to create a leak-proof seal.
- Tighten bolts in a crisscross pattern to ensure even pressure distribution.
- Check for proper alignment and secure installation before system pressurization.
Maintenance Tips
- Regularly inspect flange adapters for signs of corrosion or wear.
- Check bolt tension periodically to maintain a secure connection.
- Replace damaged gaskets immediately to prevent leaks.
- Clean external surfaces to prevent buildup of dirt and debris.
- Document inspection and maintenance activities for long-term system management.
Advantages of Using Ductile Iron Flange Adapters
Choosing ductile iron flange adapters provides numerous benefits over other materials, particularly in terms of strength, durability, and maintenance efficiency. Key advantages include
- Ability to handle high-pressure systems without deformation
- Resistance to cracking and impact damage
- Extended service life due to corrosion-resistant coatings
- Ease of assembly and disassembly for maintenance purposes
- Compatibility with various pipe materials, including ductile iron, PVC, and steel
Cost-Effectiveness and Longevity
While ductile iron flange adapters may have a higher initial cost compared to some alternative materials, their durability and low maintenance requirements make them cost-effective over the long term. Reduced downtime, fewer repairs, and extended service life contribute to significant savings in operational expenses. For municipal and industrial systems, investing in high-quality flange adapters ensures reliable performance and reduces the risk of unexpected failures.
Standards and Specifications
Flange adapter ductile iron products are manufactured according to strict international standards to ensure safety, reliability, and compatibility with existing piping systems. Standards such as ISO, ANSI, and AWWA define the dimensions, pressure ratings, and material properties of flange adapters. Adherence to these standards guarantees that the adapters can safely connect with other components while maintaining optimal performance under specified operating conditions.
Choosing the Right Flange Adapter
Selecting the appropriate ductile iron flange adapter involves considering factors such as pipe size, pressure rating, operating temperature, and environmental conditions. Consulting technical specifications and manufacturer guidelines ensures that the chosen adapter meets system requirements. Additionally, professional installation and regular maintenance enhance the performance and longevity of the piping system.
Flange adapter ductile iron is a critical component in modern piping systems, offering strength, durability, and flexibility in a variety of applications. From municipal water distribution to industrial pipelines, these adapters provide reliable connections that simplify maintenance and enhance system performance. Proper installation, adherence to standards, and regular inspection ensure that ductile iron flange adapters deliver long-lasting, cost-effective performance. By understanding their features, benefits, and applications, engineers, contractors, and maintenance professionals can make informed decisions and optimize the efficiency and reliability of their piping systems.
