Transitioning between different types of piping materials is a common challenge in plumbing, water distribution, and industrial piping systems. One critical solution is the PVC to ductile iron transition coupling, a specialized fitting designed to connect polyvinyl chloride (PVC) pipes with ductile iron pipes securely and efficiently. These couplings play a vital role in ensuring system integrity, preventing leaks, and accommodating differences in material properties, diameters, and pressure ratings. Understanding the function, installation process, benefits, and considerations for PVC to ductile iron transition couplings is essential for engineers, contractors, and maintenance professionals working in various piping applications.

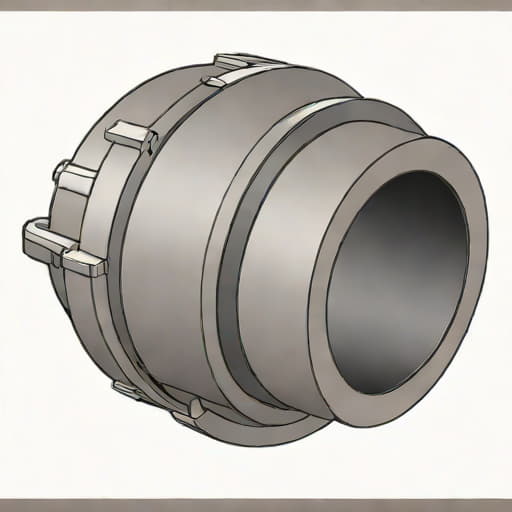

What is a PVC to Ductile Iron Transition Coupling?
A PVC to ductile iron transition coupling is a mechanical fitting that allows two dissimilar pipe materials PVC and ductile iron to be joined together in a single continuous pipeline. These couplings are engineered to handle differences in pipe stiffness, expansion, and pressure ratings while maintaining a watertight seal. Transition couplings are commonly used in water supply systems, sewage networks, industrial piping, and irrigation systems where upgrades, repairs, or system expansions require connecting new PVC pipes to existing ductile iron pipelines.
Components of a Transition Coupling
Typically, a PVC to ductile iron transition coupling consists of
- GasketProvides a flexible, watertight seal between the two pipes.
- Housing or SleeveThe main body of the coupling, which grips both pipe ends securely.
- Clamps or BoltsUsed to tighten the coupling onto the pipes, ensuring stability and sealing performance.
- AdaptersSometimes included to adjust for differences in diameter or pipe wall thickness.
These components work together to create a durable connection that can handle internal pressures, external forces, and slight misalignments between the pipes.
Applications of PVC to Ductile Iron Transition Couplings
Transition couplings are widely used across multiple industries and infrastructure projects. Their applications include
Water Distribution Systems
In municipal water supply networks, it is common to upgrade or extend pipelines using PVC pipes due to their corrosion resistance, lightweight nature, and cost-effectiveness. Transition couplings allow these new PVC sections to connect seamlessly with existing ductile iron pipes without extensive replacement, minimizing downtime and installation costs.
Sewer and Wastewater Systems
Sewage pipelines often involve a combination of ductile iron and PVC pipes. Transition couplings ensure that wastewater flows smoothly between materials, preventing leaks and infiltration while maintaining system efficiency.
Industrial and Irrigation Piping
Industrial facilities and agricultural irrigation networks often require robust piping systems that combine the flexibility of PVC with the strength of ductile iron. Transition couplings provide a reliable connection in these applications, accommodating high pressure and long-term use.
Benefits of Using PVC to Ductile Iron Transition Couplings
Transition couplings offer numerous advantages that make them an essential component in piping systems
- Leak PreventionThe flexible gasket and secure clamping reduce the risk of leaks at the joint.
- Ease of InstallationTransition couplings are relatively simple to install, often requiring minimal tools and time.
- DurabilityDesigned to withstand internal pressure, external forces, and temperature changes.
- Material CompatibilityAllows different pipe materials to coexist in a single system without corrosion or chemical reaction concerns.
- Cost EfficiencyAvoids full pipe replacement by connecting new PVC pipes to existing ductile iron lines.
Installation Process
Proper installation is crucial for the performance of a PVC to ductile iron transition coupling. The general steps include
Step 1 Pipe Preparation
Ensure that the ends of both PVC and ductile iron pipes are clean, smooth, and free of debris. Any rough edges should be removed to prevent damage to the gasket and ensure a tight seal.
Step 2 Positioning the Coupling
Slide the transition coupling over the end of the PVC pipe, then align it with the ductile iron pipe. Ensure that both pipes are properly seated within the coupling’s designated sections.
Step 3 Tightening Clamps or Bolts
Secure the coupling by tightening the clamps or bolts evenly. This step ensures uniform pressure around the gasket and prevents leaks. Avoid over-tightening, which could damage the pipe or gasket.
Step 4 Testing the Connection
After installation, perform a pressure test or leak test to confirm the integrity of the connection. Check for any signs of movement, misalignment, or seepage around the coupling.
Considerations for Selecting a Transition Coupling
Choosing the right PVC to ductile iron transition coupling requires attention to several factors
- Pipe DiameterEnsure the coupling matches the outer diameter of both PVC and ductile iron pipes.
- Pressure RatingSelect a coupling rated for the operating pressure of the system.
- Environmental ConditionsConsider temperature fluctuations, soil conditions, and exposure to chemicals that could affect gasket or coupling materials.
- Alignment ToleranceCouplings should accommodate slight misalignments between pipes without compromising the seal.
- Standards ComplianceChoose couplings that meet relevant standards for quality and safety, such as ANSI, AWWA, or ISO certifications.
Maintenance and Longevity
Transition couplings are designed for long-term reliability but require routine inspection and maintenance. Key practices include
- Periodic checks for leaks or signs of wear
- Ensuring bolts remain tight and gaskets are intact
- Cleaning around the coupling to prevent debris accumulation
- Monitoring for pipe movement that could affect alignment
With proper care, PVC to ductile iron transition couplings can last decades, providing a cost-effective and dependable solution for pipeline connectivity.
PVC to ductile iron transition couplings are essential components in modern piping systems, offering a reliable solution for connecting dissimilar materials. Their benefits include leak prevention, ease of installation, durability, and material compatibility, making them suitable for water distribution, wastewater management, industrial piping, and irrigation applications. Proper selection, installation, and maintenance of these couplings are critical to ensuring system performance and longevity. By understanding their functions, components, and best practices, engineers, contractors, and maintenance professionals can ensure seamless integration of PVC and ductile iron pipes, contributing to efficient and robust piping infrastructure.
