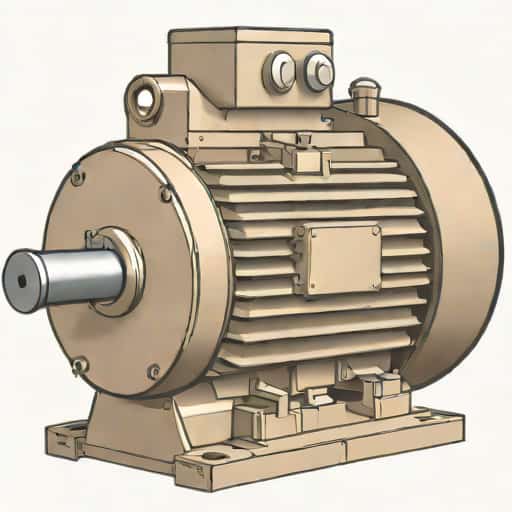

The squirrel cage induction motor is one of the most widely used types of electric motors in industries and households due to its simplicity, robustness, and efficiency. Its design allows for reliable operation with minimal maintenance, making it a preferred choice for applications ranging from fans, pumps, and compressors to industrial machinery. Understanding the structure, working principle, advantages, and applications of a squirrel cage induction motor can help engineers, students, and technicians appreciate why this motor remains a cornerstone of modern electrical engineering and mechanical systems.
Introduction to Squirrel Cage Induction Motor
A squirrel cage induction motor is a type of AC motor in which the rotor consists of conductive bars connected by end rings, forming a structure resembling a squirrel cage. The stator is equipped with a three-phase winding, which, when energized, produces a rotating magnetic field. The interaction between the rotating field and the rotor bars induces a current in the rotor, generating torque that causes the rotor to turn. This simple yet effective design has made squirrel cage motors widely adopted for various industrial and commercial purposes.
Structure of Squirrel Cage Induction Motor
The basic structure of a squirrel cage induction motor includes the stator, rotor, and housing. Each component plays a crucial role in the motor’s operation.
- StatorThe stationary part of the motor containing the laminated core and three-phase winding. It produces the rotating magnetic field when AC voltage is applied.
- RotorThe rotating part shaped like a squirrel cage, consisting of conductive bars and end rings. It interacts with the magnetic field from the stator to produce motion.
- End Shields and BearingsThese support the rotor and allow it to rotate smoothly inside the stator.
- HousingProtects the internal components from dust, moisture, and mechanical damage.
Working Principle
The squirrel cage induction motor operates based on electromagnetic induction, which is the principle discovered by Michael Faraday. When three-phase AC voltage is applied to the stator windings, a rotating magnetic field is created. As this magnetic field cuts across the rotor bars, it induces a current in the rotor due to relative motion. According to Lenz’s law, the rotor current generates its own magnetic field that opposes the stator field, resulting in torque and causing the rotor to rotate. The rotor always rotates slightly slower than the synchronous speed of the stator’s magnetic field, which is why this motor is called an induction motor.
Synchronous Speed and Slip
The synchronous speed of a squirrel cage induction motor is determined by the supply frequency and the number of poles in the stator winding. It is calculated using the formula
Ns= (120 Ã f) / P
whereNsis the synchronous speed in RPM,fis the supply frequency in hertz, andPis the number of poles. The rotor rotates at a slightly lower speed than the synchronous speed, and this difference is called slip, which is essential for torque generation. Typical slip values for squirrel cage motors range from 0.5% to 5% under normal operating conditions.
Types of Squirrel Cage Rotors
Although the basic design remains the same, squirrel cage rotors can vary depending on the application and starting characteristics.
- Solid RotorMade from solid aluminum or copper bars embedded in the rotor slots, providing simplicity and durability.
- Laminated RotorConsists of stacked laminated sheets to reduce eddy current losses and improve efficiency.
- Double Cage RotorFeatures two layers of rotor bars, one for high starting torque and one for efficient running performance.
Advantages of Squirrel Cage Induction Motors
Squirrel cage induction motors offer several benefits that contribute to their widespread use.
Simple and Robust Construction
The design of these motors is straightforward, with no brushes, commutators, or slip rings. This simplicity reduces mechanical failures and lowers maintenance requirements, making the motors highly reliable.
Cost-Effective
Due to their simple construction and wide availability, squirrel cage motors are relatively inexpensive compared to other motor types. Their durability and low maintenance further enhance cost-effectiveness over their operational life.
High Efficiency
Modern squirrel cage motors are designed for efficient energy use. Laminated rotors, optimized winding designs, and quality materials contribute to high performance and reduced power losses.
Wide Range of Applications
These motors are versatile and can be used in various applications, including
- Pumps and compressors
- Fans and blowers
- Conveyor systems
- Industrial machinery
- HVAC systems
Starting Methods
Although squirrel cage motors are simple, starting them directly on full voltage can produce a high inrush current. Various methods are employed to reduce starting current and improve motor performance.
Direct-On-Line (DOL) Starter
This method applies full voltage directly to the motor terminals. It is simple but generates high starting current, suitable for small motors where current impact on the supply system is minimal.
Star-Delta Starter
Used for larger motors, this method initially connects the motor windings in a star configuration to reduce voltage and starting current. After the motor reaches a certain speed, it switches to a delta connection for normal operation.
Autotransformer Starter
An autotransformer reduces the applied voltage during startup, limiting inrush current and mechanical stress on the motor. It is commonly used for heavy-duty industrial applications.
Maintenance and Operational Considerations
Despite their low maintenance requirements, some considerations are essential for the efficient operation of squirrel cage induction motors.
- Ensure proper ventilation to avoid overheating.
- Regularly inspect bearings and lubricate as needed.
- Check electrical connections for tightness and signs of wear.
- Monitor motor temperature and current to detect abnormal conditions early.
- Clean the motor periodically to prevent dust and debris buildup.
The squirrel cage induction motor remains a fundamental component in modern electrical and mechanical systems due to its simplicity, reliability, and efficiency. Its robust construction, low maintenance requirements, and cost-effectiveness make it ideal for a wide range of applications, from industrial machinery to everyday appliances. Understanding the structure, working principle, types, and operational considerations of squirrel cage induction motors is crucial for engineers, technicians, and students. Proper selection, installation, and maintenance of these motors ensure long-lasting performance and optimal energy efficiency. With their proven reliability and adaptability, squirrel cage induction motors continue to be a cornerstone of electrical engineering and industrial automation worldwide.
