A gantry crane is a specialized type of crane used in industrial settings to lift, move, and transport heavy materials across short distances with precision and efficiency. Unlike traditional cranes that are fixed or mounted on a building, gantry cranes feature a bridge-like structure supported by two vertical legs, which often run on tracks or wheels. These cranes are highly versatile and are commonly found in shipyards, construction sites, manufacturing plants, and warehouses. Their design allows them to handle extremely heavy loads, making them an essential tool for industries that require the movement of large components, containers, or machinery.
Definition and Components of a Gantry Crane

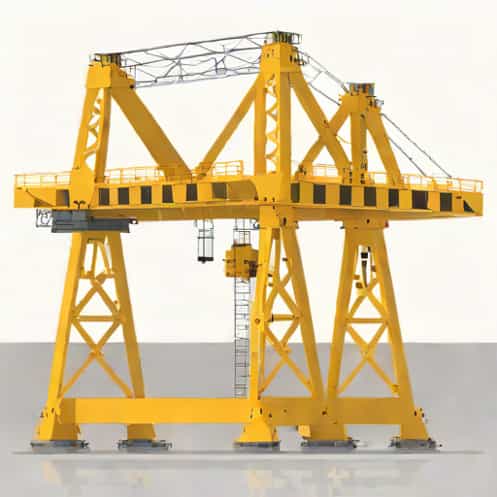

A gantry crane can be defined as a type of overhead crane with a bridge supported by freestanding legs that move on wheels or along rails. The crane consists of several key components that work together to lift and transport loads safely
- BridgeThe horizontal beam that spans the area to be covered. It carries the hoist and trolley along its length.
- LegsVertical supports that connect the bridge to the ground or tracks. These provide stability and bear the crane’s weight.
- HoistThe lifting mechanism that raises and lowers heavy loads.
- TrolleyMoves along the bridge to position the hoist directly above the load.
- Tracks or WheelsAllow the crane to move across the workspace, providing flexibility in lifting operations.
Types of Gantry Cranes
Gantry cranes come in different configurations to meet specific industrial requirements. Some of the most common types include
- Full Gantry CranesThese cranes have legs that extend from the ground to support the bridge and move on tracks. They are commonly used in shipyards and large warehouses.
- Portable Gantry CranesSmaller, lighter cranes designed for mobility within workshops or smaller industrial areas. They often feature wheels for easy relocation.
- Single Girder Gantry CranesUtilize one main horizontal beam for lifting lighter loads, typically up to 20 tons.
- Double Girder Gantry CranesFeature two parallel beams for enhanced strength and capacity, suitable for extremely heavy loads above 100 tons.
Applications of Gantry Cranes
Gantry cranes are widely used across multiple industries due to their ability to lift and move heavy materials efficiently. Some common applications include
- ShipbuildingGantry cranes are essential in shipyards for lifting ship components, engines, and hull sections during construction and repair.
- ConstructionLarge precast concrete blocks, steel beams, and other heavy construction materials are easily moved using gantry cranes.
- ManufacturingFactories use gantry cranes to transport heavy machinery, molds, and raw materials across production lines.
- Warehousing and LogisticsGantry cranes help in loading and unloading shipping containers and organizing heavy goods in storage facilities.
- Steel and Metal IndustryHandling steel sheets, coils, and other dense materials requires the strength and precision of a gantry crane.
Advantages of Using Gantry Cranes
The use of gantry cranes in industrial settings provides numerous benefits that enhance productivity and safety
- High Load CapacityGantry cranes can handle extremely heavy loads, making them suitable for demanding industrial applications.
- FlexibilityTheir mobility along tracks or wheels allows for versatile positioning and transportation of materials.
- Space EfficiencyGantry cranes do not require permanent building structures, making them ideal for outdoor or temporary setups.
- Enhanced SafetyReduces manual lifting, lowering the risk of workplace injuries.
- Precision HandlingTrolleys and hoists allow precise positioning of heavy loads, critical in construction and manufacturing environments.
Safety Considerations for Gantry Cranes
Operating a gantry crane requires strict adherence to safety protocols due to the potential hazards associated with lifting heavy materials. Key safety considerations include
- Regular maintenance and inspection of structural components, hoists, and trolleys to prevent mechanical failure.
- Proper training and certification of crane operators to ensure safe and efficient operation.
- Using appropriate rigging equipment and load securing techniques to prevent accidents.
- Monitoring weight limits and load distribution to avoid tipping or structural damage.
- Clear communication between operators and ground personnel to coordinate movements and reduce risks.
Technological Advancements in Gantry Cranes
Modern gantry cranes incorporate advanced technology to improve efficiency and safety. Some of these innovations include
- AutomationAutomated control systems enable precise load movement and reduce reliance on manual operation.
- Remote OperationWireless controls allow operators to manage the crane from a safe distance.
- Load MonitoringSensors provide real-time feedback on weight, balance, and stress to prevent overloading.
- Energy EfficiencyModern cranes use energy-saving motors and regenerative braking to reduce operational costs.
Maintenance and Longevity
Proper maintenance is critical for the safe and efficient operation of gantry cranes. Regular inspections of structural integrity, hoist components, trolley movement, and electrical systems ensure the crane operates reliably. Lubrication of moving parts, checking for wear and tear, and timely replacement of damaged components extend the lifespan of the crane. Adhering to manufacturer guidelines and safety standards guarantees long-term performance and reduces the risk of unexpected downtime in industrial operations.
A gantry crane is a versatile and powerful tool in the industrial sector, designed to lift and transport heavy loads with precision and safety. From shipyards to warehouses, these cranes enhance productivity by enabling the efficient movement of large materials. Understanding the different types, applications, advantages, and safety measures associated with gantry cranes is crucial for maximizing their effectiveness. With technological advancements and proper maintenance, gantry cranes continue to be indispensable equipment in modern industrial operations.
